Three Filter Belt Type Gravity Belt Thickening/Dehydrating Belt Filter Press-DTB3 Series
Industrial Belt Filter Press Solid Liquid Separation Processes-Standard Type-Suitable for Low/Middle Consistency
Description
The belt filter press (sometimes called a belt press filter, or belt filter) is an industrial machine used for solid-liquid separation processes.
A belt filter press is a type of industrial filtration equipment used to separate liquids and solids from a slurry mixture. The press consists of a series of belts that are arranged in a loop and used to filter the slurry as it passes through the press.
Application
1. The sludge dewatering of the various industrial wastewater treatment plants.
2. The sludge dewatering of the butchery, livestock, etc.
3. The sludge dewatering of the city sewer, excretion, water purifying, etc. Sewage treatment plants.
4. Solid and liquid separate under processing for the food & beverage, chemical industry, mine, etc.
Features
Integrated sludge dewatering system, continuous auto running;
Belt Thickener effectively improves the sludge solid content and flocculation
Flocculation system with patent reduces polymer consumption;
Good corrosion resistance;
The main structure is made of stainless steel;
Pneumatic tensioning device;
7-segment to 9-segment press rollers.
Benefits:
Continuous auto running;
Low power consumption, the longevity of service;
Easy to manage, easy to maintain;
Low noise, low consumption of PAM dosage ;
Economical, reliable, and wide application.
Belt Position Correcting System
This system can automatically keep detecting and rectifying the deviation of belt cloth, so as to guarantee the normal operation of our machine and also extend the lifespan of the belt.
■Press Roller
The press roller of our sludge belt filter press is made from SUS304 stainless steel. Additionally, it has gone through the TIG reinforced welding process and delicate finishing process, thus featuring a compact structure and ultra-high strength.
■Air Pressure Control Device
Tensioned by an air cylinder, the filter cloth can run smoothly and safely without any leakage.

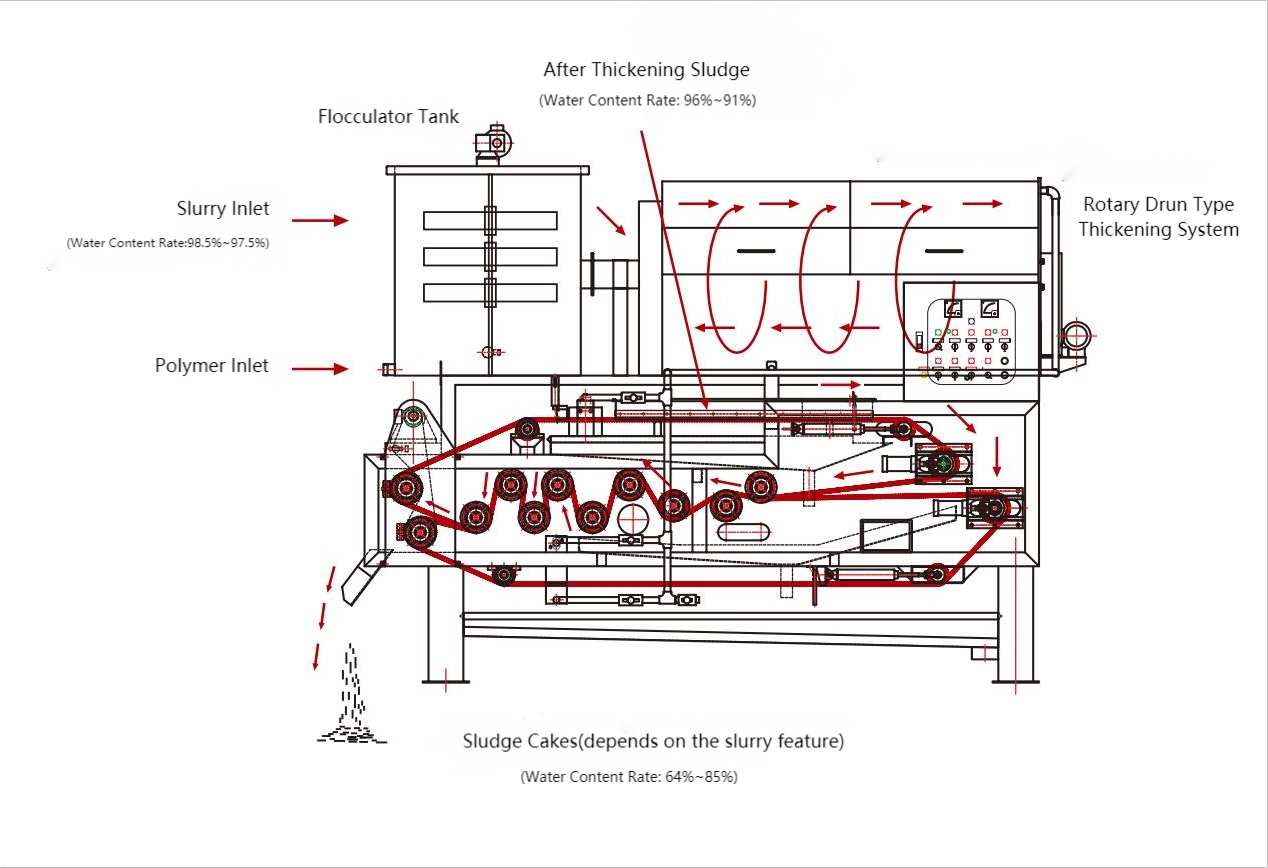

How Our Belt Filter Press Works
- After flocculation and compression periods, the slurry is delivered to a porous belt for thickening and gravity dewatering.
- A large amount of free water is separated by gravity, and then the slurry solids are formed.
- After that, the slurry is sandwiched between two tensioned belts to pass through the wedge-shaped pre-compression zone, low-pressure zone, and high-pressure zone.
- It is extruded step by step to maximize the separation of sludge and water.
- At last, the filter cake is formed and discharged.
Technical Data & External Dimensions of Belt Filter Press
Remark:
1. Our company will reserve the modifying right of the above specifications.
2. Treating capacity and the water content rate depend on the slurry feature
3. Please ask for the actual installation dimension before ordering.
Allocation Schema for Peripheral Equipment
The Reference Treating Data Sheet of The Major Waste Slurry
